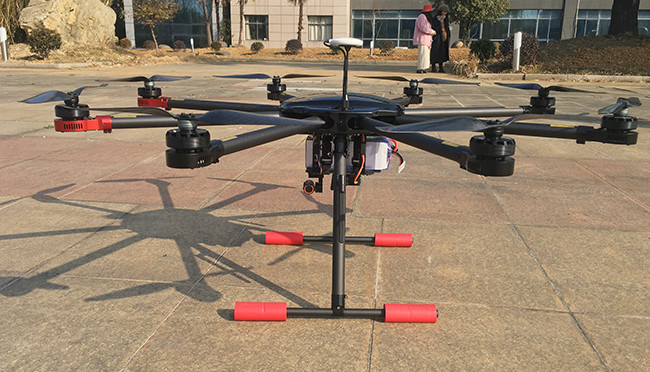

NPA-805H Powerline Tethered Drone With 8 Axels Maximum Flight Distance 2-4km

NEW LANDLE TECHNOLOGY CO.,LTD
Contact Now

NPA-805H Powerline Tethered Drone With 8 Axels Maximum Flight Distance 2-4km

  • 1
  • 2

Brand Name : NLD

Model Number : NPA-805H

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Box

Type : Power line drone- 8 axels, horizontal folding

Flying speed : 0~15m/min

Empty weight : 4kg

Axle distance/Height : 1080mm/450mm

Camera : Single Axis Gimbal 720P

Diameter of traction rope : 2-4mm

Contact Now

NPA-805H Powerline Drone With 8 Axels Maximum Flight Distance 2-4km

  • The drone function of our company covers all the functions in the market.
  • It can be used in special situations such as crossing the railway line at night.
  • Features include but are not limited to: GPS positioning, fully automatic return, headless mode, semi-automatic return, low voltage protection alarm, out of control return, locked heading, on-board electrical display, camera OSD return.

Parameter

  • Axle distance/Height: 1080mm/450mm
  • Camera: Single Axis Gimbal 720P
  • Fail-Safe: with
  • GPS: with
  • No-load endurance: 25-30min
  • Load endurance: 12-18min
  • Maximum take-off weight: 14kg
  • Empty weight: 4kg
  • Flight mode: Manual control; ATT; GPS
  • Maximum flight distance: 2-4km
  • Flying speed: 0~15m/min
  • Diameter of traction rope: 2-4mm
  • Flight height: 0-1000m (adjustable)
  • Battery: 16000mAh 6S
  • Maximum tension: 8kg
  • Working Temperature: -5℃---50℃

Parts

  1. 1set Drone with DJI flight control system
  2. 1set Dual channel charger
  3. 1set Battery voltage capacity checker
  4. 1set Professional remote control NIRC1
  5. 1set Tool kits
  6. 1pack Spare screws
  7. 1pcs Aviation aluminum box
  8. 2pcs 16000mah high quality battery
  9. 4pcs Backup battery strap
  10. 8pcs Spare propeller
  11. 6.5” screen mobile phone

Remarks:

  • The above configuration remote control, battery, charger are brand accessories, better quality and more powerful.
  • Equipped with brand battery, Dji Flight control system.
  • If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.

Remote controller NIRC5

  • Ultra HD 1920 * 1080, 5.5-inch high brightness HD display;
  • Super scalability, s.bus/ppm/pwm/serial port and other interfaces;
  • Ultra long data link, FHSS spread spectrum technology, full angle gain antenna, measuring traction distance of 5km;
  • Super open source, providing SDK and protocol documents;
  • With better interactive interface and greater controllable map field of vision, the aircraft realizes intelligent waypoint planning, automatic execution, automatic tracking and one click home, which provides high work efficiency in professional fields.
  • Long service life, 10000 MAH, built-in battery, service life of 6 ~ 20 hours;
  • Super easy to use Android system;

NPA-805H Powerline Tethered Drone With 8 Axels Maximum Flight Distance 2-4km

FPV Camera NC01 single axis

General Parameter
Product Digital camera
Working voltage 5V
Working current 180mA
Weight 67g
Size 71*51*48mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet

Camera parameter
Resolution 720P
Working method Video, photo
Support memory card type Micro SD card 128G (maximum)

Gimbal parameter
Gimbal Single axis
Controllable rotation range Pitch: +10°- -90°

Environment parameter
Working environment temp. -10℃ ~ 50℃
